Reaction Probability and Asymmetry

·322 words·2 mins

How about when the probability of a reaction is randomized at each pixel and at each step. The value is uniformly distributed between the p_reaction parameter and 1.0.

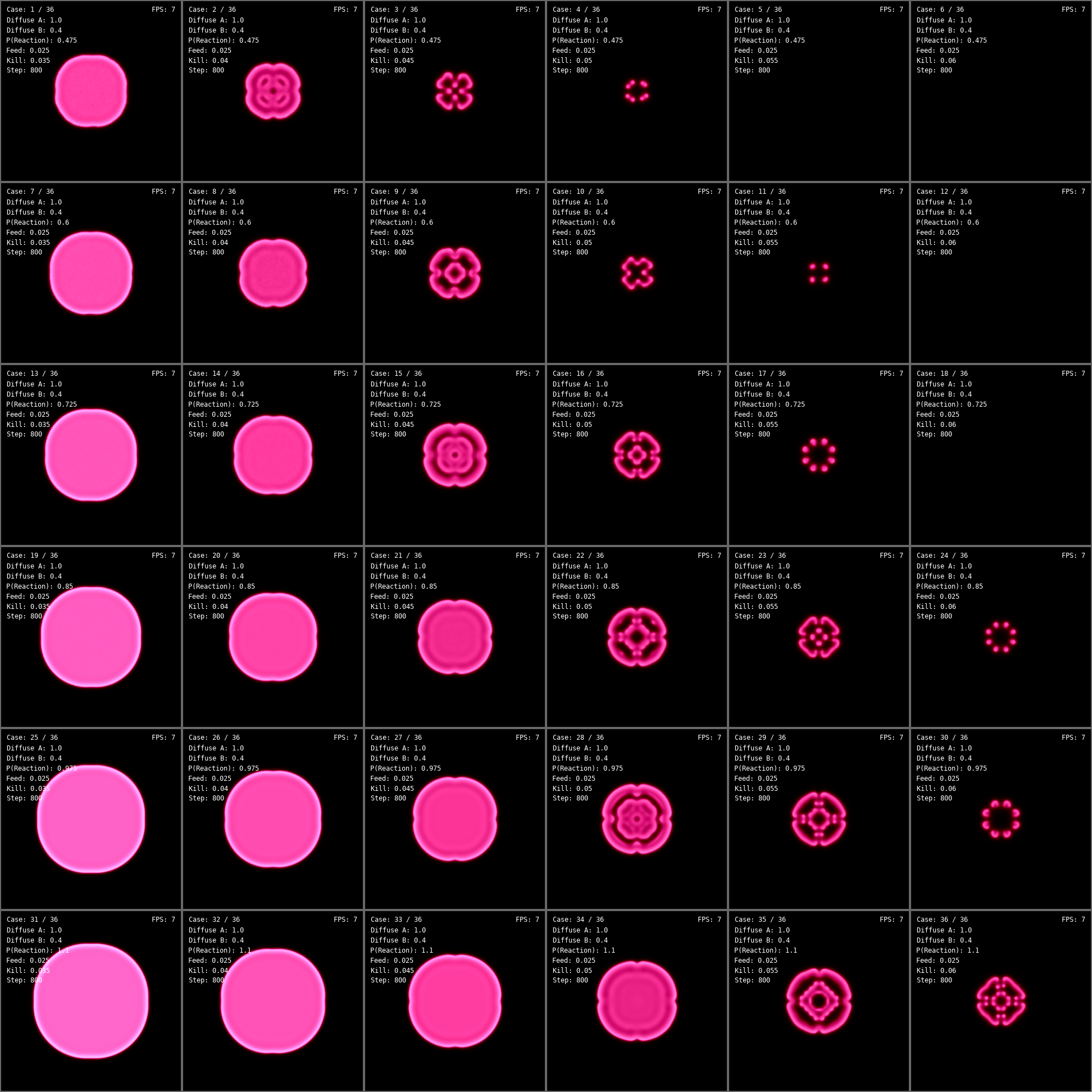

montage 5

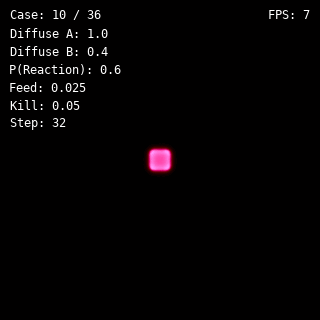

Case 10 has the most obvious asymmetry. Let’s animate it.

anim5

Coooool.

Also, I hate the way I specify the range of values I want to explore for a given parameter. I have to provide the center number and the size of the window. That means if I wanna look at feed rates between 0.7 and 1.0 I need to specify 0.85 and 0.3.

cases = get_cases(base_case, 'kill_rate', (0.045, 0.6), 'p_reaction', (0.6, 1.0), 6)

Now I can just specify the range I want to look at for each parameter.

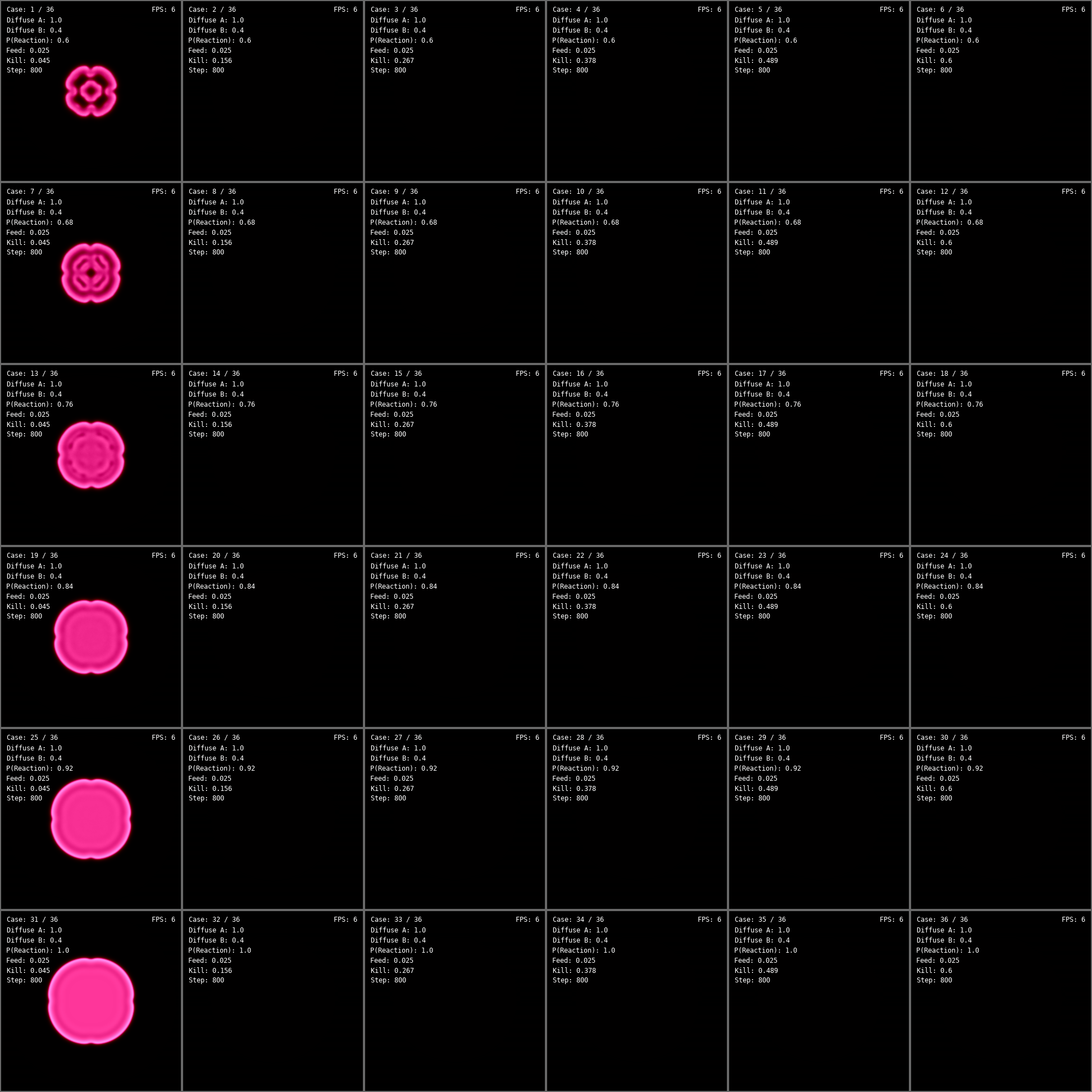

montage 6

Lol whoops, all that and I go and make a mistake setting my ranges. Hahah, classic.

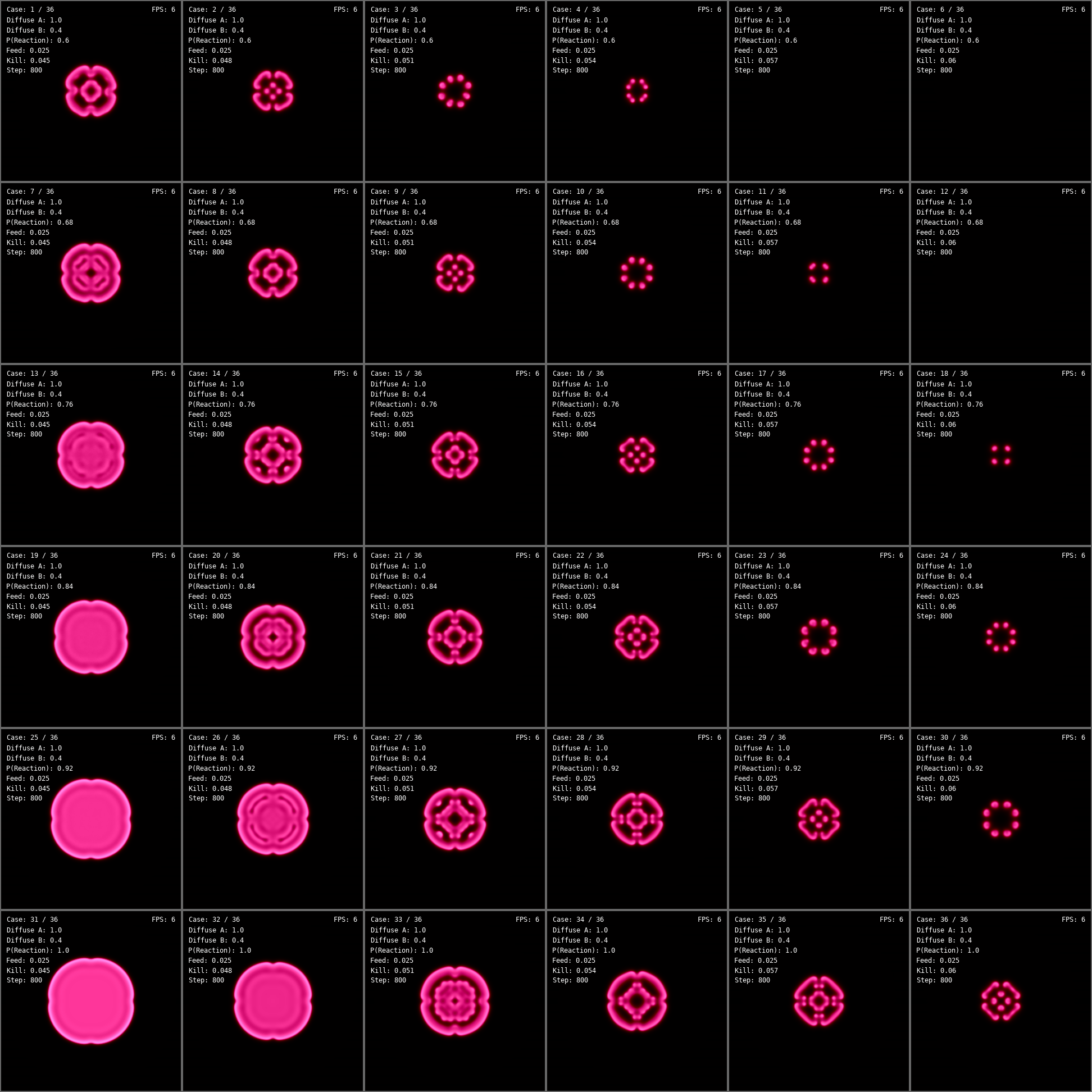

montage 7

These look cool but really, is it any different from what I’d get without the variation in probability? Maybe if they run longer, hmm…

Note to self: here’s a shell command for duplicating a file multiple times… like duplicating the last frame of an animation:

for i in {81..99}; do cp output/frame_0080.png "output/frame_00$i.png"; done

anim6

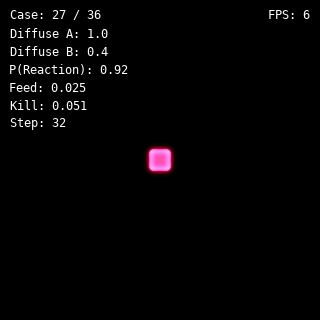

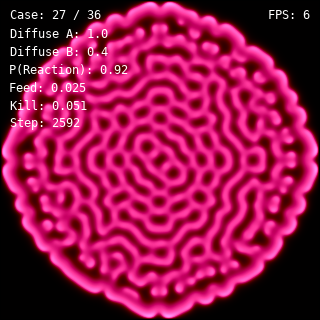

Here’s the output for case 27. I do like the shapes that form in the center. Here’s that last frame: frame_0099

Asymmetrical.

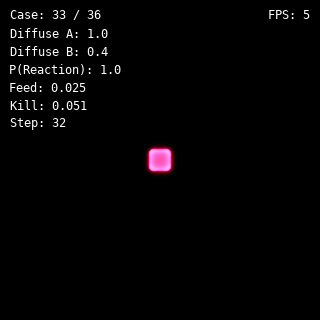

Now, how does that compare with something similar without the probability parameter? Here’s case 33 with a probability of 1.0.

anim7

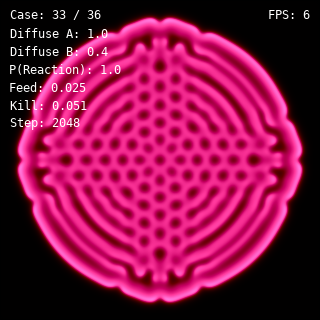

Last frame: frame_0084

Symmetrical.

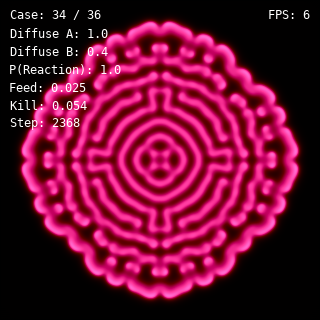

Nice. Just to double check, case 34.

anim8 frame_0094

I mean, I could probably just make the seed asymmetrical and get the same effect, right?

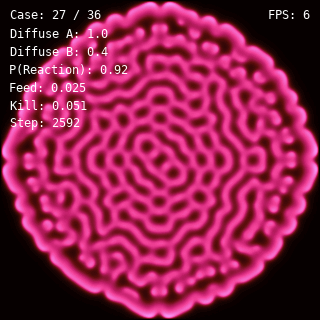

Tried flipping the image horizontally, the image that I generated with the probability parameter. Just to see how different it is … or isn’t.

anim 2

It’s definitely not symmetrical but it’s interesting how similar it is. Would be neat to measure the symmetry and assign a score. I wonder what the sweet spot is. Completely symmetrical is boring. Completely asymmetrical is boring. Okay, no, all of them can be interesting.
